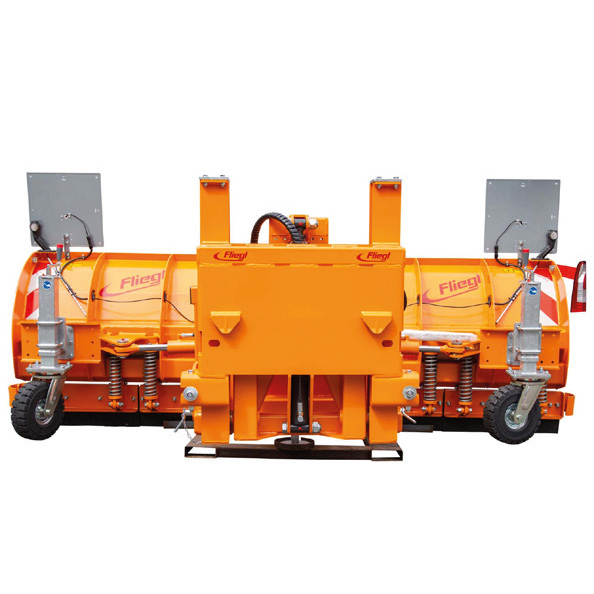

»Mammut Duplex« levelling and snow removal blade

PRODUKTINFOS
direkt auf's Handy

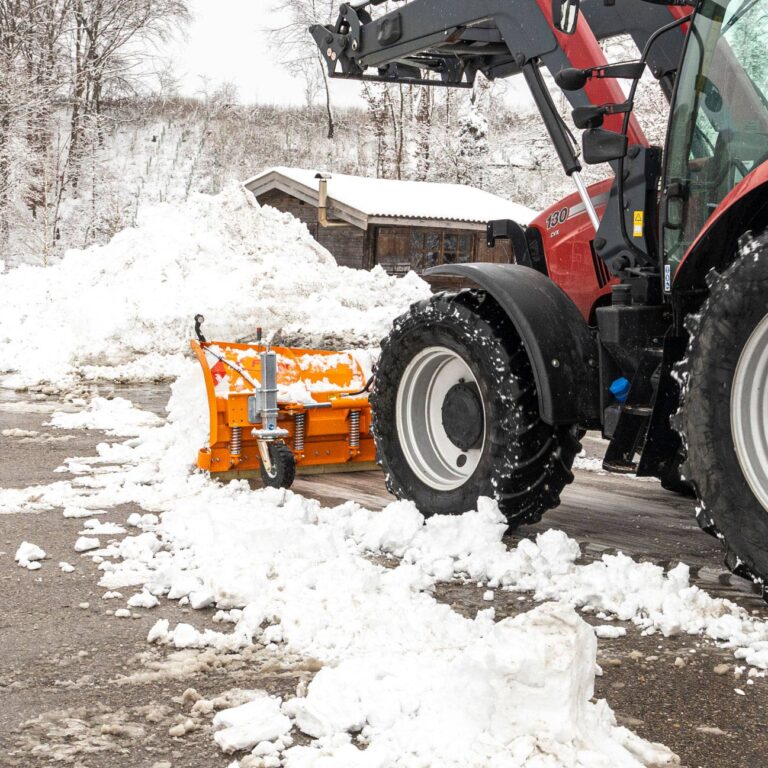

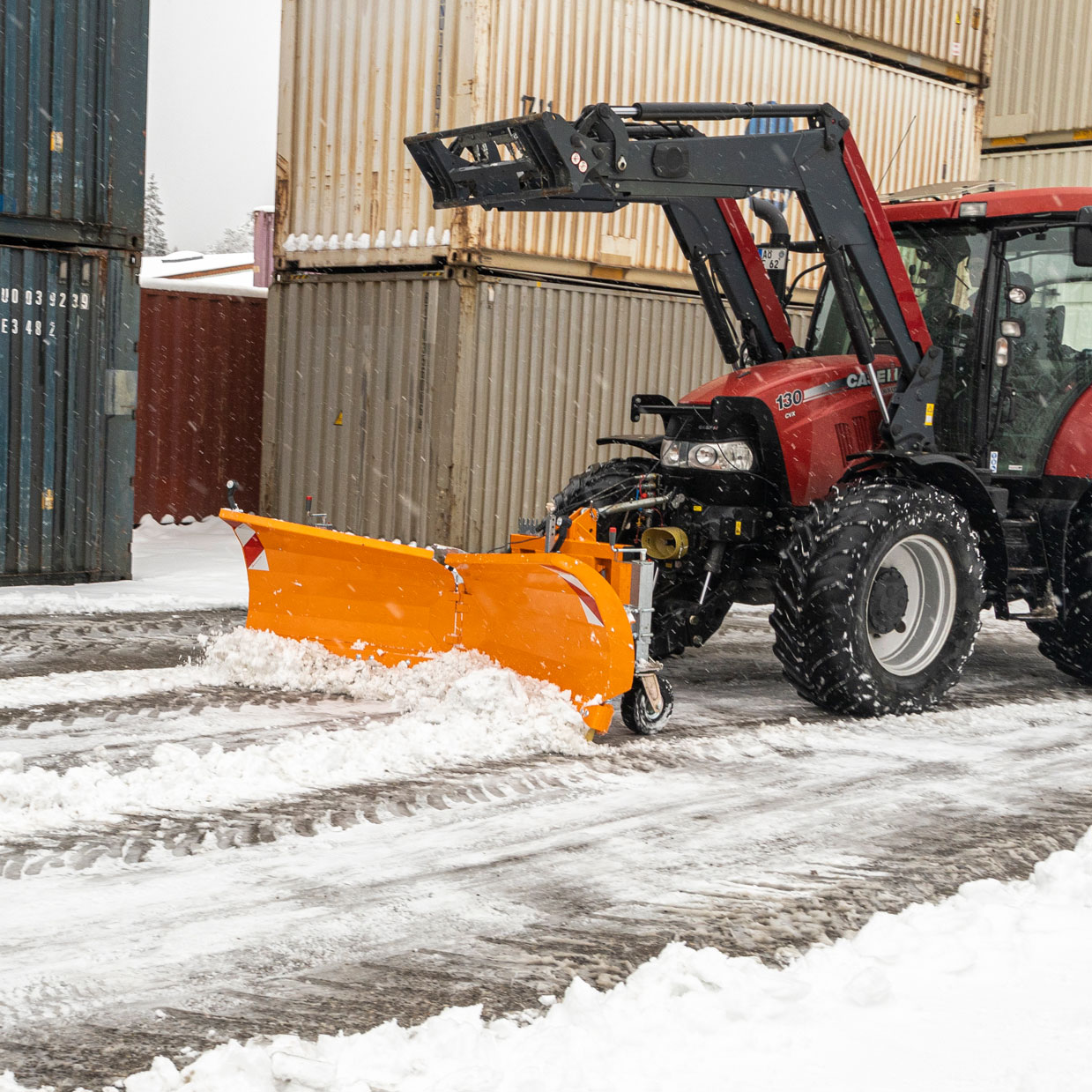

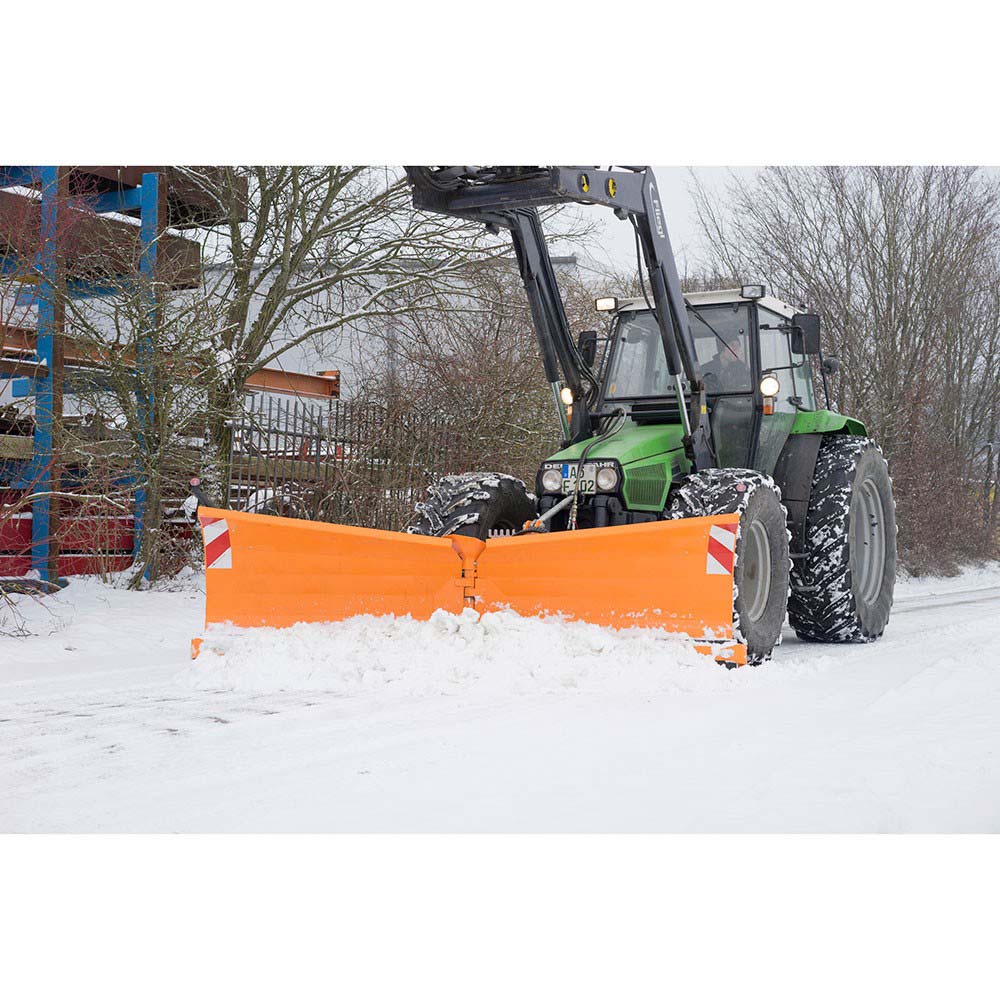

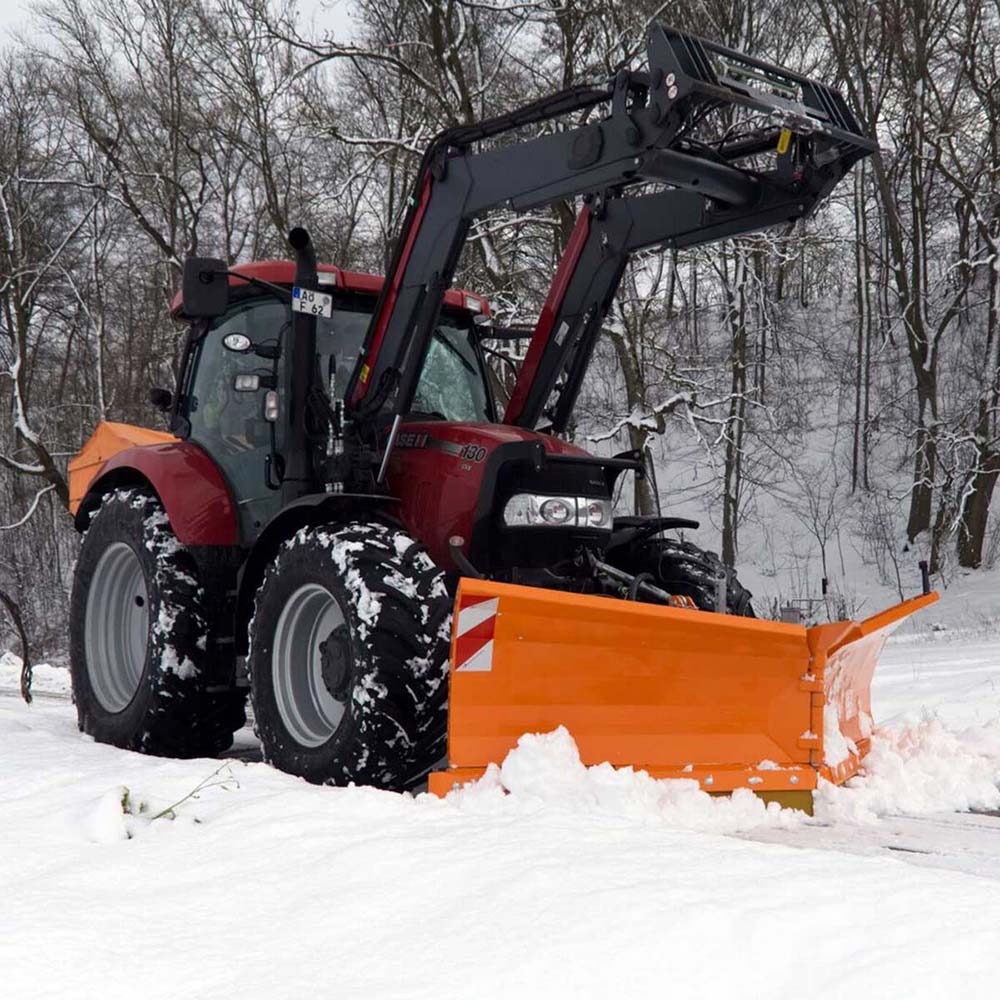

Clearing snow is an important job for agricultural tractors during the winter season. Fliegl Agro-Center supplies snow plows in four widths for this purpose: 2300 mm, 2700 mm, 3000 mm and 3300 mm. The “Mammut Duplex” snow blade works quietly, thanks to its enormously robust scraper bar made of polyurethane.

Technical details:

With Cat. 2 three-point hitch as standard
Galvanised as standard
Optional galvanisation and additional painting in deep orange RAL 2011 – for maximum corrosion protection
Blade height, inside: approx. 820 mm Blade height, outside: approx. 980 mm
Lateral ground adaptation: ±5°
Hydraulic wing control
With highly wear-resistant polyurethane scraper rails as standard (height 200 mm, thickness 40 mm)
2 double-acting hydraulic cylinders
1 double-acting connection required

Features:

Wings can be swivelled individually by approx. 30º
Innovative three-point headstock with level compensation
Supporting foot
Edge lighting

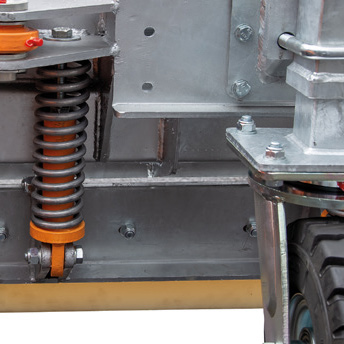

Damage-free operation thanks to spring-loaded overload protection

Accessories:

Scraper bars made of steel HB 500

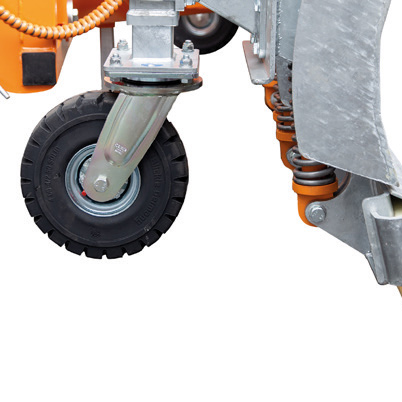

Support wheels “heavy duty” Ø 306 mm
Skids Ø 178 mm, height 270 mm, Ø 10 mm with internal pressure spring and support spindle
Rubber strips with fabric insert
Clip-on warning signs, with handle and light for front mounting
Clip-on warning signs, with handle and light for rear mounting
Warning flags white/orange 500 x 500 mm – made of polyester, with wooden handle 800 mm and holder
Warning stripes
Control block for simultaneous pivoting of the 2 wings, incl. control panel
Mounting adapter for communal plate size 3 (DIN 76060) incl. hydraulic height adjustment
Mounting adapter for communal plate size 5 (DIN 15432) incl. hydraulic height adjustment
